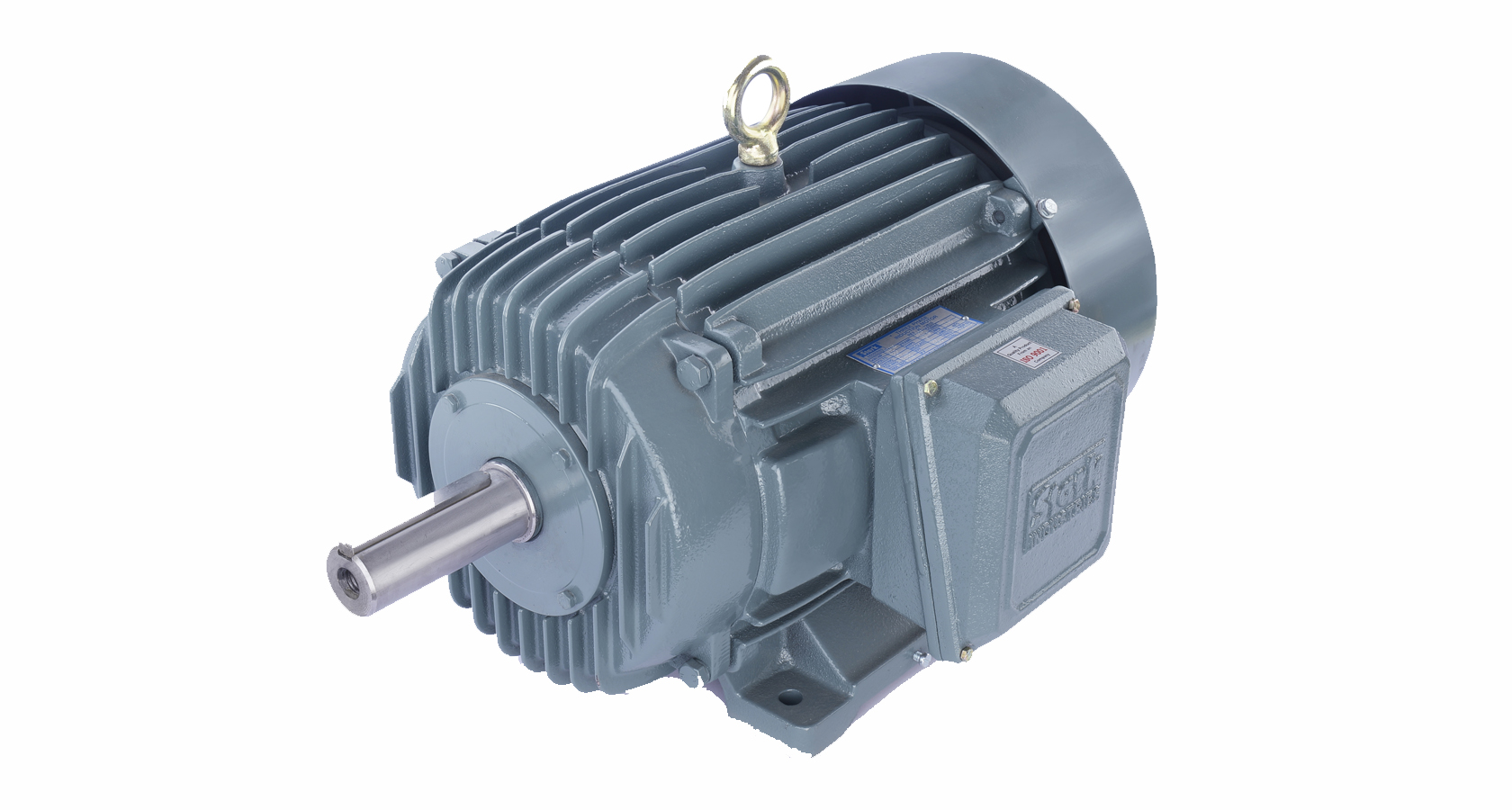

Dual Speed Motors
Two speed single winding motors.
Specifications
Technical specifications as per IS 12615 : 2018
WINDING: S/W D/W
RANGES: 0.18 KW / 0.25 HP to 11 KW / 15 HP
SPEED: 2P / 4P, 8P/2P, 6P/ 4P, 8P/4P, 12P/6P
FRAME: 63F to 180L
APPLICATION: Special Purpose Machines, Textile Machines, Bakery Machines etc.,
Dimension On Request
Features
» Castings for body frame end shields, bearing shields etc., are made out of quality graded grey iron casting which assures fairly long years of utility.
» Pressure die-cast aluminium body for frame 63 to 180 L also available.
» All motors are supplied with ‘B’ class insulation.Insulation class ‘F’ and ‘H’ can be given on request.
» All standard motors are capable for service factor 1.1 at rated voltage and frequency / or continuous duty.
» Core materials are with low loss high grade silicon steel.
» Oil seals are provided to ensure IP 55 protection.
